Single Use Systems are custom Designed From lab to Process

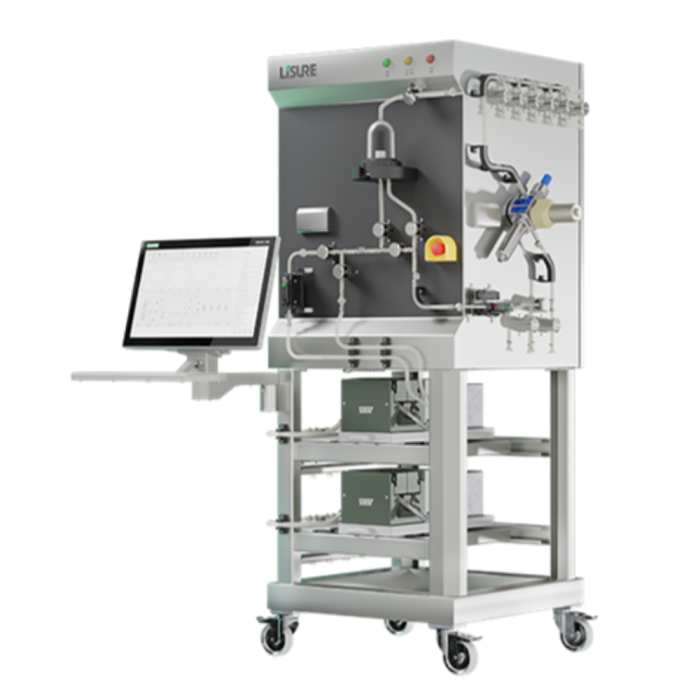

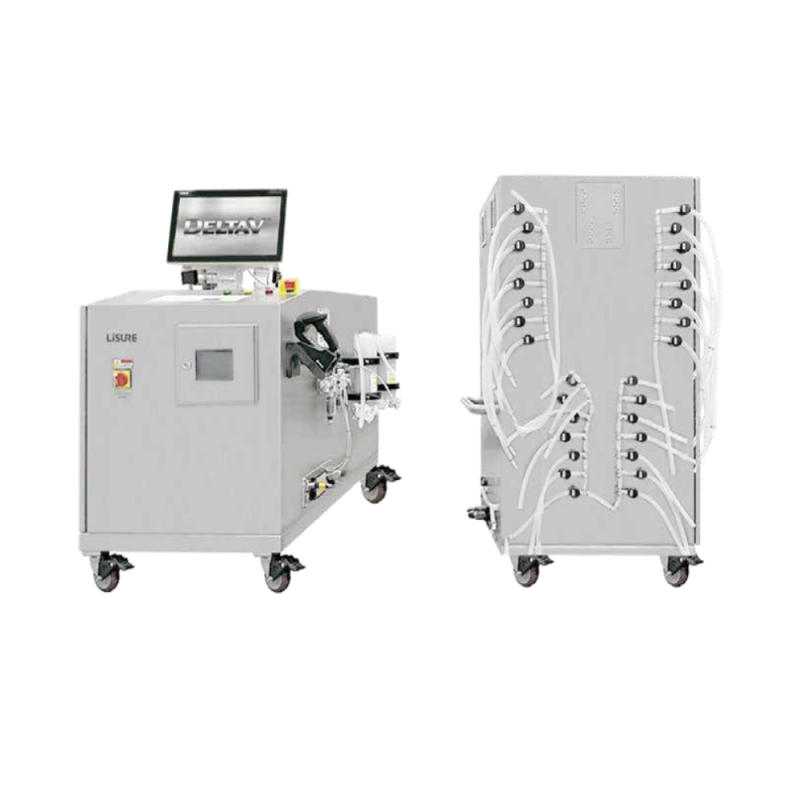

Single Use Chromatography System
Wide range of flow rates, the two sequences of systems cover the flow rate range from 4l/h-2000l/h, and the pipeline kit includes 1/4-inch, 1/2 inch, 3/4 inch, 1 inch. Allow customers to choose the best pipeline within the recommended range, the maximum operating pressure can reach 4Bar
Optional gradient kit, supports gradient elution and online dilution Easy to install, the pipe can be snapped into the slot directly
Inlet pump with slide rail design, convenient and quick installation/removal of pump tube
Optional valve status detection sensor Special finishes available, 304 or 316L stainless steel
Pinch valves are calibrated for clamping force, clamping clearance and stroke to ensure optimum performance.
Configure APPS CBS software, comply with FDA 21 part11 requirements, and provide complete verification documents. In addition, Emerson Delta V operating software is optional, supporting DCS database merging.
Disposable flow path: Single-Use, ready-to-use and disposable, which can meet the purification of difficult-to-clean products and avoid cleaning validation challenges; Flow path standard design, produced in a C-level workshop, provides a sterile irradiated version, which can guarantee immediate Disassemble and use; Easy to install, support quick installation or disassembly, reduce preparation or cleaning time between batches; supported by complete verification documents, in line with GMP/EP/USP and other regulatory requirements.

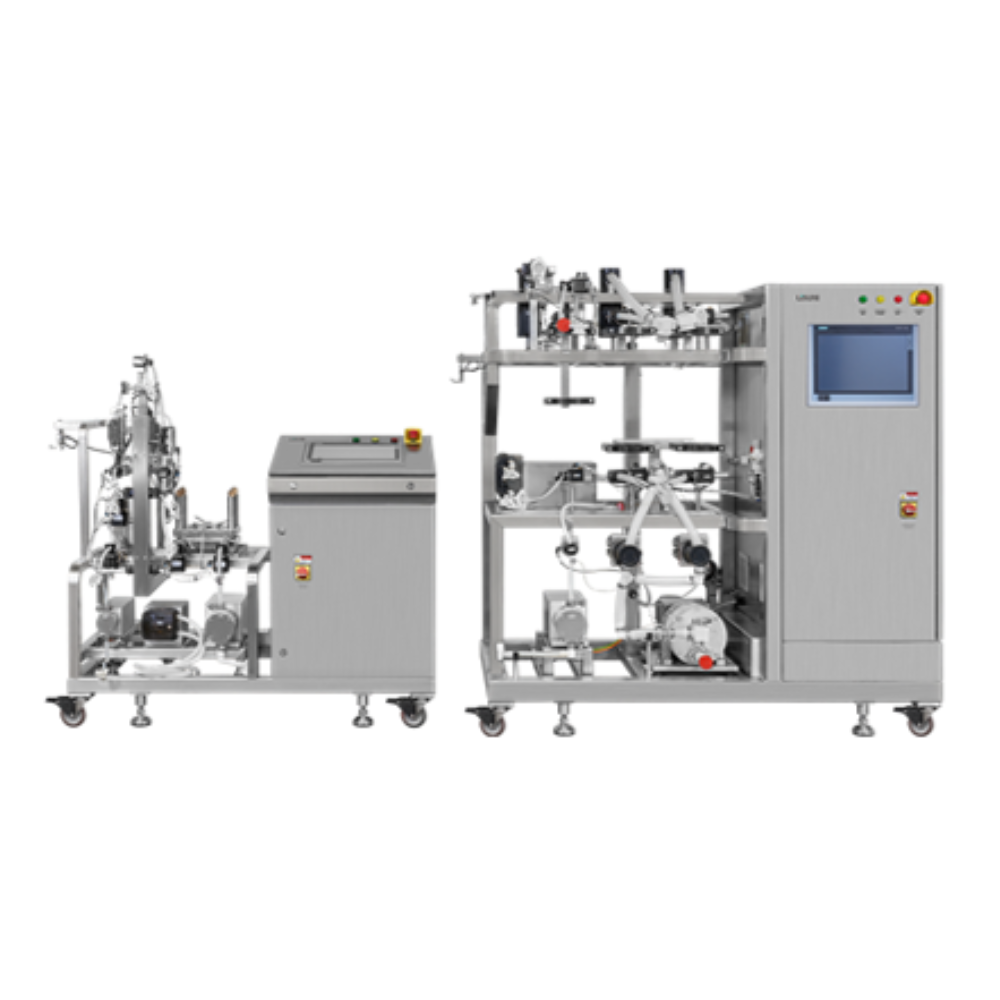

Single-Use Ultrafiltration System
Four specifications are optional: 0.5m2, 5m2, 10m2, 20m2
Circulating pump: peristaltic pump and disposable
PP diaphragm pump head are optional
Clamping holder PP material
Disposable consumables, sterilization by radiation
Supporting integration with mixer

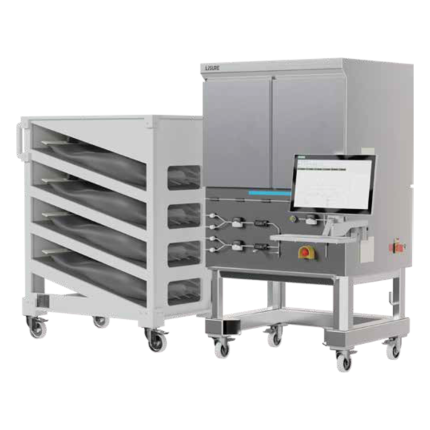

Bulk Dispensing System
High dispensing efficiency: It takes only 2 min to finish dispensing 12L freeze-thaw bag, with dispensing accuracy ±50g. It can finish dispensing more than 1500L within 8 hours.
Aseptic packaging: A customized 3D disposable pipeline is adopted, and with modular design to make it removable; Freeze-thaw bags and pipeline interfaces are equipped with sterile joints; Ultrasonic flowmeter; disposable pressure sensor probe; High precision peristaltic pump; The material/buffer inlet adopts CPC connector; Customized freeze-thaw bag transporter to save labour cost.
Automation: Process-level software with data logging, authority classification, electronic signatures and phase editing function; Personnel only need to transport the freeze-thaw bag into the freezer, connect the freeze-thaw bags, and it can be operated by one person only.
